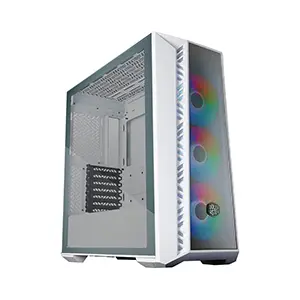

Cooler Master MasterBox 520 MESH White ARGB ATX Mid Tower Case Tempered Glass
Cooler Master MasterBox 520 MESH White ARGB ATX Mid Tower Case Tempered Glass Model MB520-WGNN-S00
FINEMESH PERFORMANCE FRONT PANEL
Large mesh intakes offer unrestricted airflow and stellar thermals for demanding systems.
THREE CF120 ARGB FANS INCLUDED
Pre-installed CF120 ARGB fans provide ample airflow, ensuring low temperatures, high performance, and eye-catching aesthetics during even the most intense gaming sessions.
REMOVABLE TOP PANEL
The top panel is entirely removable for improved access and easy installation of cooling solutions such as fans and radiators.
SCREWLESS & TOOL-FREE TG SIDE PANEL
The tempered glass side panel is secured with pins for easy removal, facilitating quick, easy installation.
VERSATILE COOLING OPTIONS
Supports up to seven 120mm fans and dual 360mm radiators on the top and front panel.
(RE)MOVABLE HDD CAGE
The HDD cage is completely (re)movable for improved access during assembly and system upgrades.
ARGB/FAN HUB INCLUDED
The included controller allows users to manage systems lighting independently from the hardware configuration and provides the user with 4 additional fan headers in case of need.
UPGRADED REMOVABLE DUST FILTER BRACKET
The bottom dust filter bracket is robust and locked sturdily in place during travel, remaining easy to remove for cleaning purposes.
RICH CONNECTIVITY
The I/O panel comes with a USB 3.2 (Gen 2) Type-C port, a USB 3.2 (Gen 1) Type-A port, and one 3.5mm (audio + mic) headset jack.
BREATHABLE POWER SUPPLY SHROUD
The ventilated PSU cover supports both active and passive cooled PSUs installed in multiple orientations.
HARDWARE COMPATIBILITY
MasterBox 520 Mesh is natively compatible with ITX, M-ATX and ATX motherboards.
E-ATX motherboards, such as SSI-CEB models, are compatible with dimensions up to 12″ x 10.7″.
Materials – Exterior Mesh, Steel, ABS Plastic, Tempered Glass
Materials – Left Side Panel Tempered Glass
Dimensions (L x W x H) 502 x 210 x 498mm (Incl. Protrusions), 443 x 210 x 498mm (Body Size)
Volume 50L
Motherboard Support Mini ITX, Micro ATX, ATX, SSI CEB, E-ATX*, (*up to 12″ x 10.7″ motherboards, may impact cable management feature)
Expansion Slots 7
3.5″” Drive Bays 2
2.5″” Drive Bays 3
I/O Panel 1x USB 3.2 Gen 1 Type-A, 1x USB 3.2 Gen 2 Type-C, 1x 3.5mm Headset Jack (Audio+Mic), 1x Reset/ARGB button
Included Accessories ARGB Fans Hub
Pre-installed Fans – Front 3x CF120 ARGB
Fan Support – Top 3x 120mm, 2x 140mm
Fan Support – Front 3x 120mm, 2x 140mm
Fan Support – Rear 1x 120mm
Radiator Support – Top 120mm, 140mm, 240mm, 280mm, 360mm, (recommended maximum thickness -55mm)
Radiator Support – Front 120mm, 140mm, 240mm, 280mm, 360mm
Radiator Support – Rear 120mm
Clearance – CPU Cooler 165mm
Clearance – PSU 200mm, (Recommended up to 170mm)
Clearance – GFX 410mm
Dust Filters Bottom, Front, Top
Power Supply Support ATX
