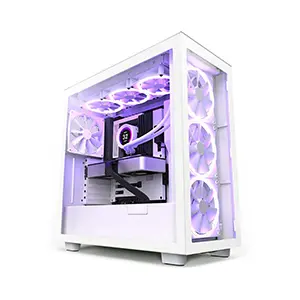

NZXT H7 Elite White Premium Mid-Tower Case
NZXT H7 Elite Premium Mid-Tower PC Gaming Case – CM-H71EW-02 – RGB LED & Smart Fan Control – Tempered Glass – White
This mid-tower case is the premier choice for enthusiasts, featuring a tempered glass front panel to show off three pre-installed 140mm F Series RGB Fans, a built-in RGB & Fan Controller, widened channels, hooks, straps, and toolless entry.
Perforated top panel
Intuitive cable management system with wide channels, hooks, & straps
Tool-less access to front & side panels
Front & top support radiators up to 360mm
Three pre-installed F Series RGB 140mm Fans
One pre-installed 140mm F Series Quiet Airflow Fan
Supports vertical GPU mounting (Sold Separately)
Built-in RGB & Fan Controller V2 w/ NZXT CAM
Tempered glass front panel
Two top-mounted USB 3.2 Type-A ports
One top-mounted USB 3.2 Type-C port
The H7 Elite combines luminous style with a large form factor, making it a elegant way to accommodate premium components.
With improved airflow, a streamlined build experience, new color options, and a tempered glass front panel, the H7 Elite is the perfect case for high-performance, RGB-focused builds.
1X H7 Elite Case
1X 140mm Quiet Airflow Fan (Case Version)
3X 140mm RGB Fan
1X RGB and Fan Controller
1X Installation Accessories
1X Manual
KEY SPECS
Motherboard Support:Mini-ITX, Micro-ATX, ATX
Enclosure Type:Mid-Tower
Case Material:SGCC Steel, Ultra-clear Tempered Glass,
DIMENSIONS
Height:505mm (With Feet)
Width:230mm
Depth:480mm
Weight:11.36 kg
COMPATIBILITY & CLEARANCE
Max CPU Cooler Clearance:Up to 185mm
Max GPU Clearance:Up to 400mm
Front Radiator Clearance:60mm
Top Radiator Clearance:30mm
Cable Management:18-22mm
FRONT I/O PORTS
USB 3.2 Gen 1 Type-A:2
USB 3.2 Gen 2 Type-C:1
Headset Audio Jack:1
RGB AND FAN CONTROLLER
Fan Channels:3
NZXT RGB Connector:6 (Support up to 120 LEDs)
EXPANSION SLOTS
Standard:7
Vertical:0
DRIVE BAYS
2.5″:4+2
3.5″:2
FAN SUPPORT
Front:3 x 120mm / 3 x 140mm
Top:3 x 120mm / 2 x 140mm
Rear:1 x 120mm / 1 x 140mm
Filters:All Air Intakes
RADIATOR SUPPORT
Front:Up to 360mm with Push/Pull
Top:Up to 360mm
Rear:Up to 140mm
FAN SPECS
Model:F140Q (Case Version)
Speed:1200 ± 240RPM
Airflow:99.56 CFM
Static Pressure:1.14 mm-H2O
Noise:24.18 dBA
Fan Connector:3-pin
FAN SPECS
Model:F140 RGB
Speed:500 – 1800 RPM
Airflow:24.85 – 89.48 CFM
Static Pressure:0.94 – 3.39 mm-H2O
Noise:20 – 32.5 dBA
Fan Connector:4-pin
